Product Description

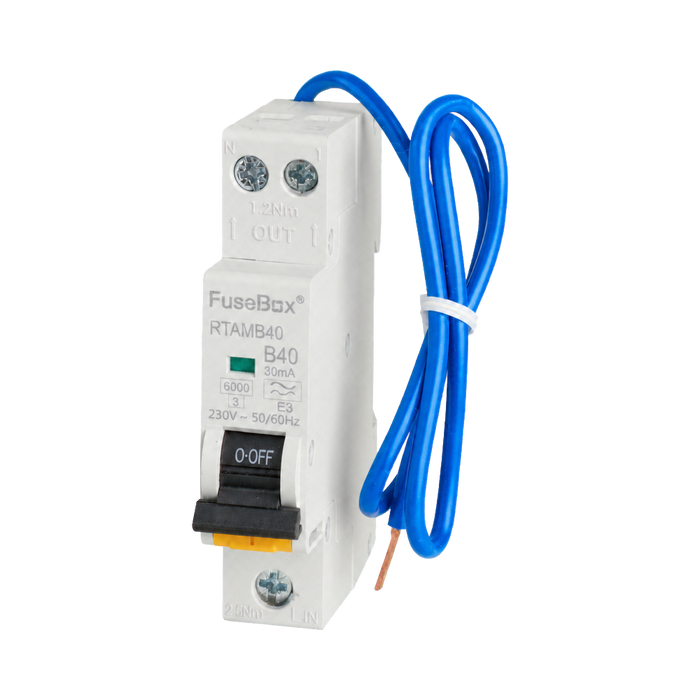

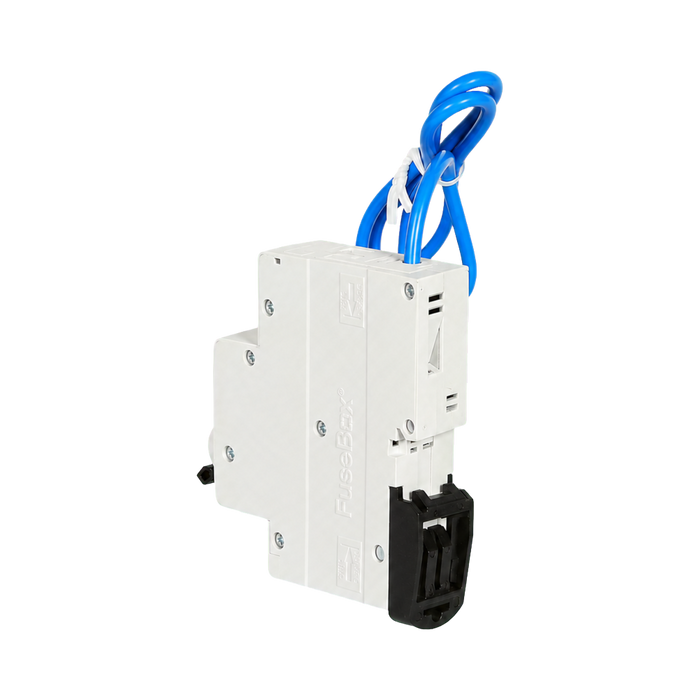

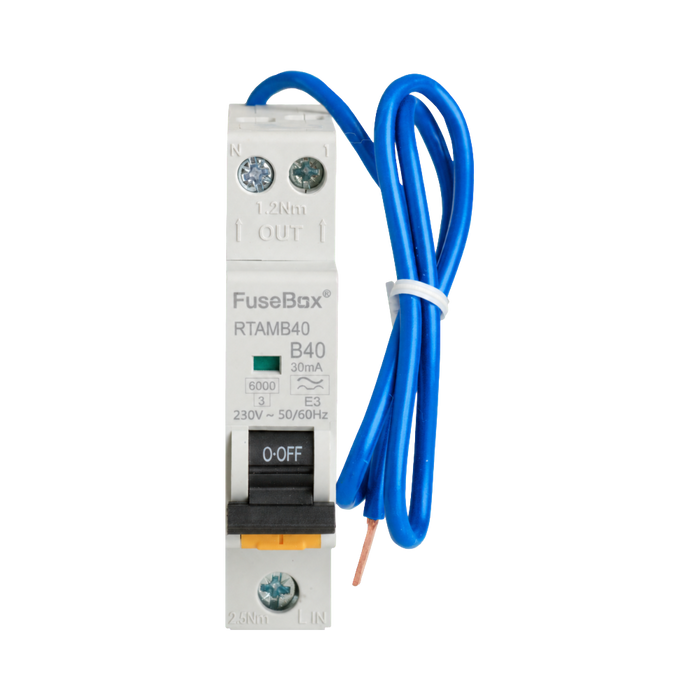

The FuseBox 40A Type A B Curve 30mA 6kA Bi-Directional Mini RCBO RTAMB40BD is a compact Type A RCBO designed for circuits where current may flow in either direction, including solar PV and battery storage installations. It combines 40A B curve overcurrent protection with 30mA residual-current protection.
Both line and neutral are switched, providing protection against overloads, short circuits and earth leakage. Its single-module format is designed for compatible FuseBox consumer units and helps maximise wiring space inside the board.
Product Details & Specifications
Dimensions
Height
85 mm
Width
18 mm
Depth
69.5 mm
Product Details
SKU
RTAMB40BD
Manufacturer
FuseBox
Range
FuseBox Circuit Protection
Product Type
Bi-Directional Mini RCBO
Protection Details
Current Rating
40 A
Curve
B Curve
Residual Current Type
Type A
Residual Current Sensitivity
30 mA
Short-Circuit Rating
6 kA
Pole Configuration
1P+N
Switching
Live and Neutral Switched
Power Flow
Bi-Directional
Suitable Applications
Solar / PV and Other Bi-Directional Power-Flow Applications
Compliance and Warranty
Standards
IEC 61009-1 / IEC 61009-2-2
Manufacturer Warranty
5 Years
