BG Circuit Protection 31 Way 100A Main Switch Consumer Unit with SPD CF236MS31
Original price
£161.92
-
Original price
£161.92
Original price
£161.92
£161.92
-
£161.92
Current price
£161.92
Ex VAT £134.93
Don't forget...
Select any useful extras and add them together.
Garo 100A 3 Pack 5 Pole Connector Block Blue Brown & GY
£15.00
Pre-order
No date currently available
Quantity
25mm Flexi Double Insulated Meter Tail Pack Sold Per Metre
£11.95
Pre-order
No date currently available
Quantity
BG Circuit Protection Stand Off Brackets Pair CUA29
£3.15
Pre-order
No date currently available
Quantity
Page 1 of 1
Product Description
The BG Circuit Protection consumer units feature a two-row, double bank board design that delivers flexible solutions. They maximise circuit options for larger homes and can be adapted for dual tariff, standard, or renewable energy configurations.

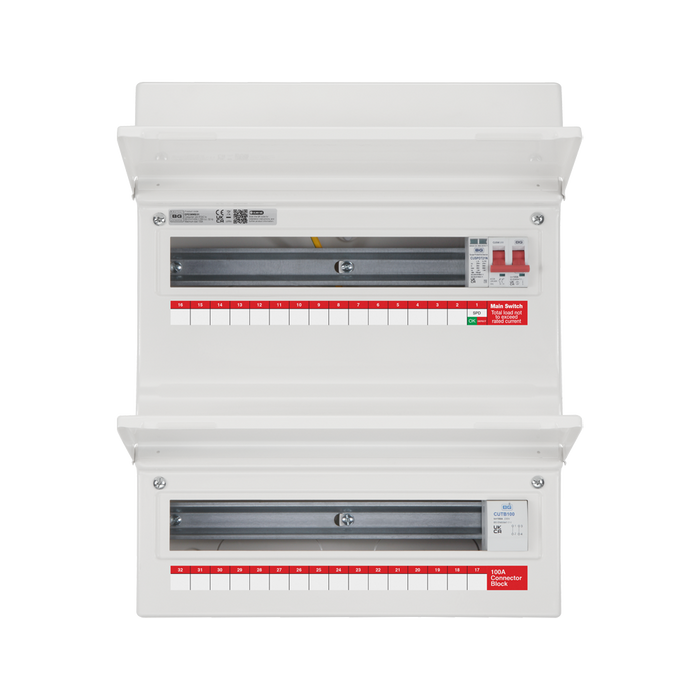

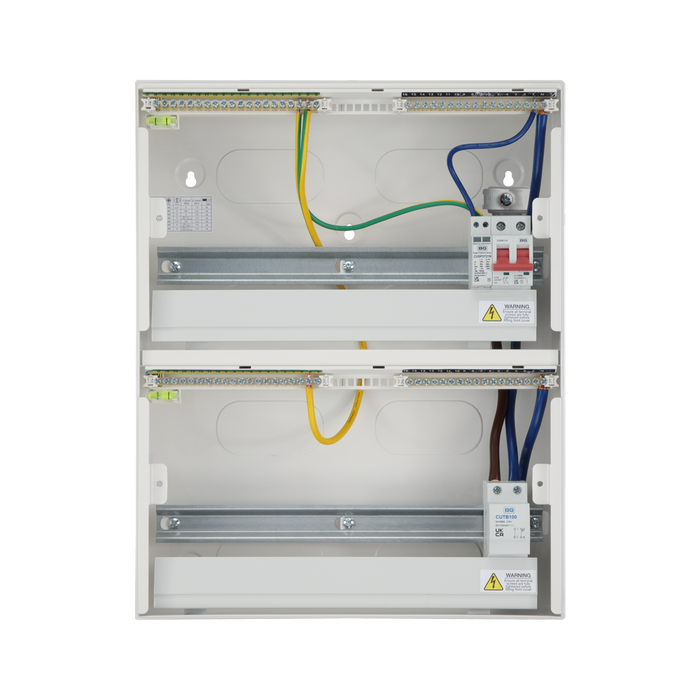

Supplied complete with an integral spirit level, fitted 100A Main Switch, 100A 2 pole connector block and prewired type 2 SPD.
Product Details & Specifications
Empty - No RCBOs included
100A main switch (fitted)
100A 2 pole connector block (fitted)
Type 2 SPD - 1 module (pre-wired)
Integrated spirit level

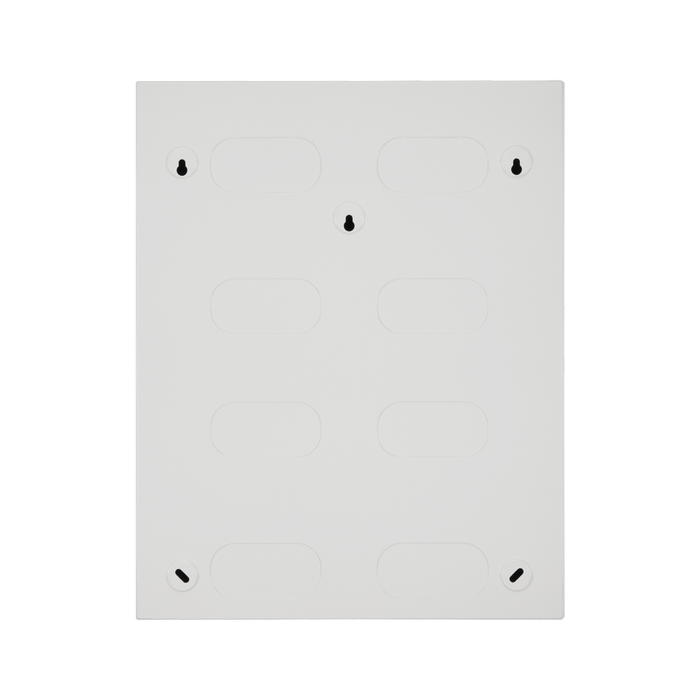

Large rear knockouts (4 rows)
Optional cable clamp included
40mm knockouts in sides, top and base
Backed out and retained terminal screws
Installation Method- Surface Mounted
Number of Phases- 1
Protection Options- MCB, SPD
IP Rating- IP2XC
Colour- White - RAL9016 (Traffic White)
Main Switch Rated Current- 100A
Connector Block Rated Current- 100A
Rated Operational Voltage 230V
Frequency -50Hz
Rated & Insulation Voltage (Ui) - 500V AC
Type of Supply Voltage -AC
Rated Impulse Withstand Voltage (Uimp)- 4kV
Rated Conditional Short Circuit Current (Icc)- 16kA
Pollution Degree - 2
UV Stability - Yes
Main Switch Terminal Capacity - 35mm²
Main Switch Terminal Torque - 2.5Nm
Connector Block Terminal Capacity - 35mm²
Connector Block Terminal Torque - 2.5Nm
SPD Terminal Capacity - 1.5 - 6mm²
SPD Terminal Torque - L/N 1.2Nm PE 3NM
Dimensions of Product (36 module)
Height
483.2 mm
Width
387.4 mm
Depth
116.5 mm
