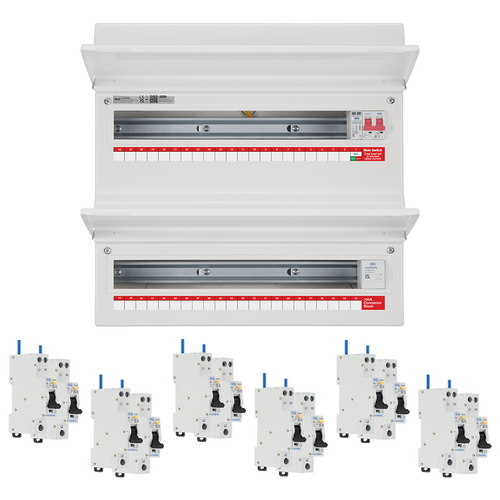

BG Circuit Protection 43 Way 100A Main Switch Consumer Unit SPD with RCBO's CF248MS43

Name: BG Circuit Protection 43 Way 100A Main Switch Consumer Unit SPD with RCBO's CF248MS43
Brand: BG Electrical
SKU: CF248MS43-B
Price: 158.18 GBP
Availability: InStock

£158.18 - £158.18

£158.18

£158.18 - £158.18

£158.18

Ex VAT £131.82

Included board

BG Circuit Protection 43 Way 100A Main Switch Consumer Unit SPD with RCBO's CF248MS43

SKU: CF248MS43-B

Qty fixed at 1 £158.18

Choose RCBO's

Select between 30 and 43

0 / 43

BG Circuit Protection Type A Double Pole B Curve RCBO 6A CUCRB6DPA

SKU: CUCRB6DPA-B

Bundle price: £12.35 each

BG Circuit Protection Type A Double Pole B Curve RCBO 10A CUCRB10DPA

SKU: CUCRB10DPA-B

Bundle price: £12.35 each

BG Circuit Protection Type A Double Pole B Curve RCBO 16A CUCRB16DPA

SKU: CUCRB16DPA-B

Bundle price: £12.35 each

BG Circuit Protection Type A Double Pole B Curve RCBO 20A CUCRB20DPA

SKU: CUCRB20DPA-B

Bundle price: £12.35 each

BG Circuit Protection Type A Double Pole B Curve RCBO 25A CUCRB25DPA

SKU: CUCRB25DPA-B

Bundle price: £12.35 each

BG Circuit Protection Type A Double Pole B Curve RCBO 32A CUCRB32DPA

SKU: CUCRB32DPA-B

Bundle price: £12.35 each

BG Circuit Protection Type A Double Pole B Curve RCBO 40A CUCRB40DPA

SKU: CUCRB40DPA-B

Bundle price: £12.35 each

Bundle total £158.18

Select at least 30 RCBOs to continue. Maximum 43.

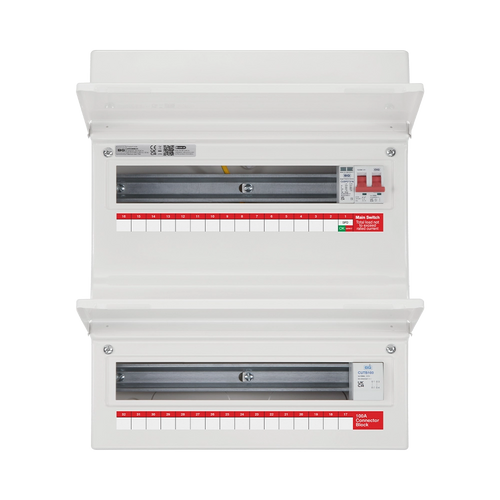

The BG Circuit Protection consumer units feature a two-row, double bank board design that delivers flexible solutions. They maximise circuit options for larger homes and can be adapted for dual tariff, standard, or renewable energy configurations.

Supplied complete with an integral spirit level, fitted 100A Main Switch, 100A 2 pole connector block, prewired type 2 SPD and the below default RCBO's.

34, 38 or 43 RCBO's
100A main switch (fitted)
100A 2 pole connector block (fitted)
Type 2 SPD - 1 module (pre-wired)
Integrated spirit level
Large rear knockouts (4 rows)
Optional cable clamp included
40mm knockouts in sides, top and base
Backed out and retained terminal screws
Installation Method- Surface Mounted
Number of Phases- 1
Protection Options- MCB, SPD
IP Rating- IP2XC
Colour- White - RAL9016 (Traffic White)
Main Switch Rated Current- 100A
Connector Block Rated Current- 100A
Rated Operational Voltage 230V
Frequency -50Hz
Rated & Insulation Voltage (Ui) - 500V AC
Type of Supply Voltage -AC
Rated Impulse Withstand Voltage (Uimp)- 4kV
Rated Conditional Short Circuit Current (Icc)- 16kA
Pollution Degree - 2
UV Stability - Yes
Main Switch Terminal Capacity - 35mm²
Main Switch Terminal Torque - 2.5Nm
Connector Block Terminal Capacity - 35mm²
Connector Block Terminal Torque - 2.5Nm
SPD Terminal Capacity - 1.5 - 6mm²
SPD Terminal Torque - L/N 1.2Nm PE 3NM
Dimensions of Product (36 module)
Height: 483.2 mm
Width:387.4 mm
Depth: 116.5 mm
