BG Electrical Grey 13A Fused Euro Module EMFUSEG
Original price
£20.00
-
Original price
£20.00
Original price
£20.00
£20.00
-
£20.00
Current price
£20.00
Ex VAT £16.67
Product Description

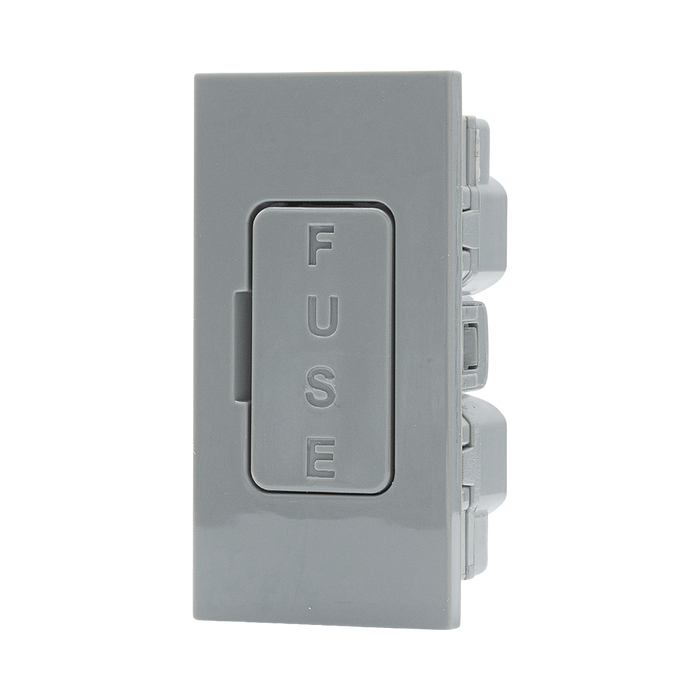

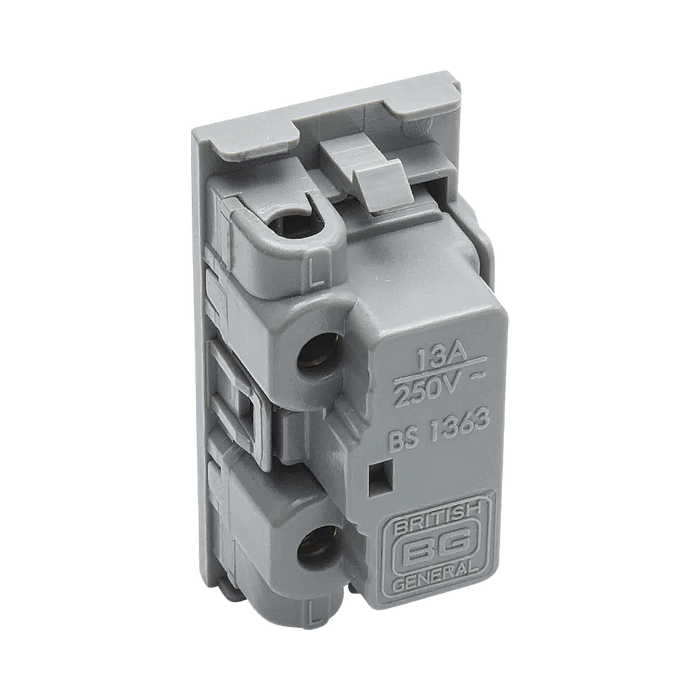

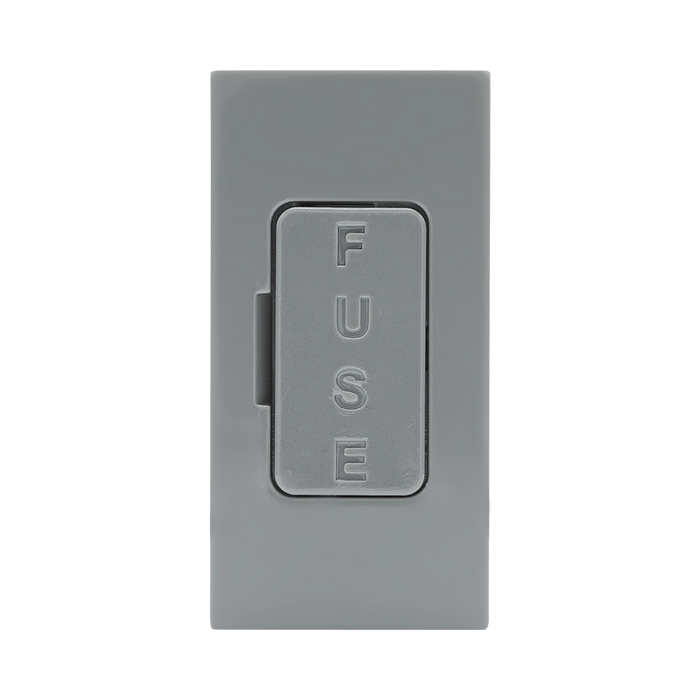

The EMFUSEG is a grey 13A fused module for compatible BG Electrical Euro Module front plates. It is supplied with a fitted 13A fuse and uses captive backed-out terminal screws for straightforward installation.
Key Features
- 13A, 250V AC rating
- 13A fuse supplied
- Captive backed-out terminal screws
- Clips into compatible BG Euro Module front plates
- Minimum 25mm mounting box depth
Product Details & Specifications
Dimensions
Height
50 mm
Width
25 mm
Depth
23 mm
Product Details
SKU
EMFUSEG
Manufacturer
BG Electrical
Range
Euro Module
Product Type
Fused Module
Colour
Grey
IP Rating
IP20
Electrical Details
Current Rating
13 A
Operating Voltage
250 V AC
Fuse
13 A fuse supplied
Terminal Capacity
3 x 2.5 mm²
Installation
Minimum Back Box Depth
25 mm
Compliance and Warranty
Standard
BS 1363-4
RS Electrical Supplies Warranty
1 Year
Manufacturer Warranty
25 Years (held directly with BG Electrical)
