BG Evolve Black Chrome 1G Master Touch Dimmer Switch PCDBCTDM1B Available from RS Electrical Supplies

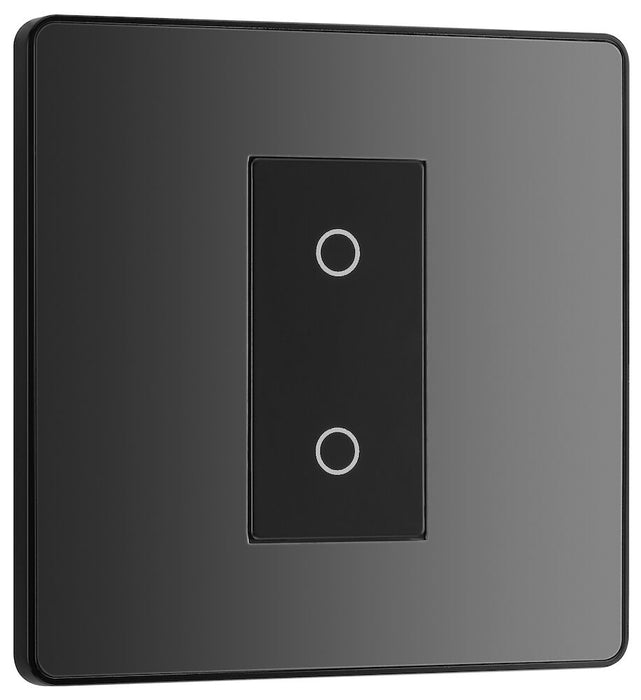

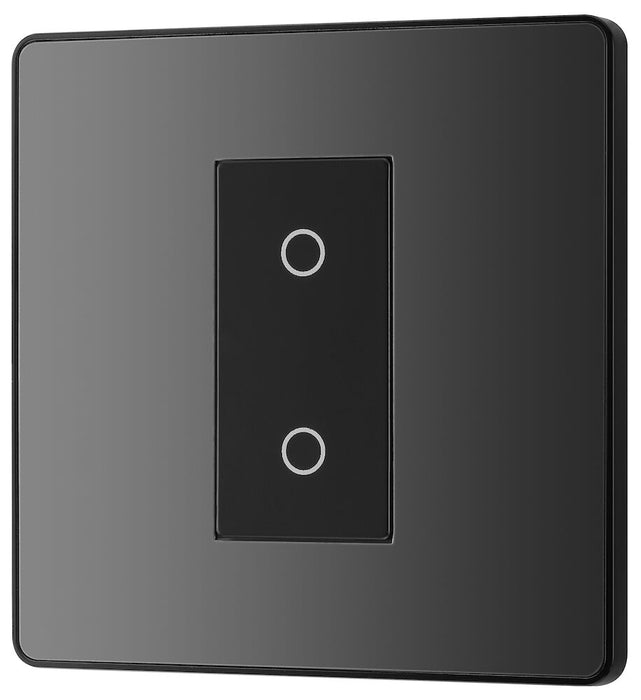

BG Evolve Black Chrome 1G Master Touch Dimmer Switch PCDBCTDM1B

£17.76 - £17.76
£17.76
£17.76 - £17.76
£17.76

The PCDBCTDM1B is a 1G master touch dimmer switch from the BG Evolve range, finished in black chrome. The BG Evolve range is new on the outside with its polycarbonate front plates but has the same trusted internal technology found in the Nexus Metal range. This Evolve range gives you the ease and flexibility to remove and change the front plates, allowing on-trend finishes without losing the level of quality and reliability.

Single Touch Dimmer Switch
2 Way when used in conjuction with a Secondary Touch Dimmer Switch
Trailing Edge
Touch dimmer control
Silent operation - no noise when dimming
Support for lower wattage lamps eliminates flicker
Minimum Mounting Box Depth 25mm
Dimmensions - 86 x 86 x 5mm
Brand - British General Electrical
Plate Projection 5mm
Black Chrome with a Black Frame
Gloss Finish
Material: Polycarbonate
Certified to BS EN 60669-2-1

Load Rating (Max/Min per module)
Dimmable LED 5-100W
Tungsten/Incandescent 5-200W
Halogen 20-200W
Dimmable Compact Fluorescent (CFL) 5-100W

Installation Note
A Master can only be used in a one way switching circuit where one switch controls a light (or circuit) i.e. on or off.
For two way switching, where a light (or circuit) is controlled by two switches, the master touch dimmer must be used with a secondary touch dimmer at the secondary location.
A master touch dimmer cannot be used in combination with a traditional light switch or any other dimmer switch.
