Product Description

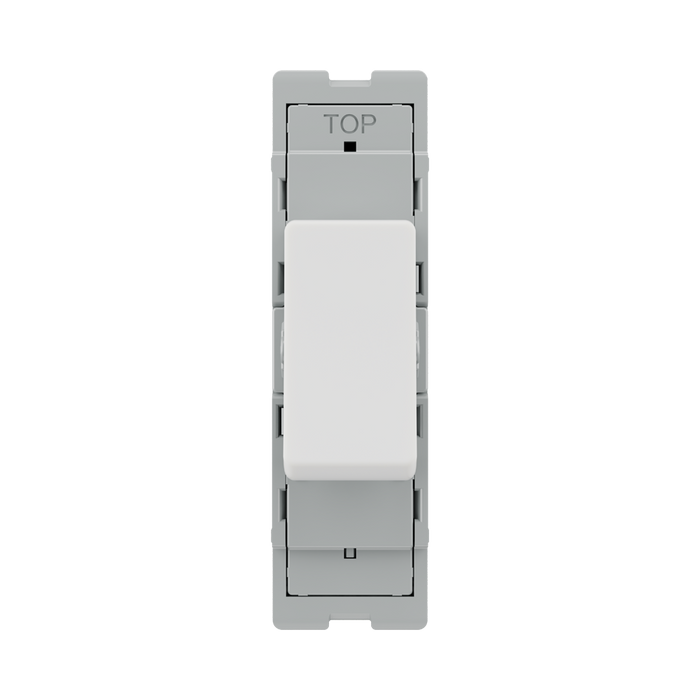

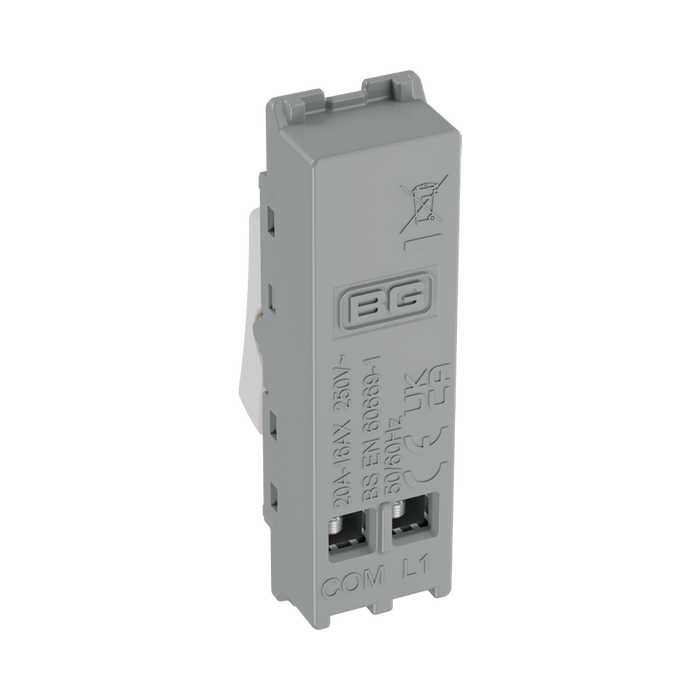

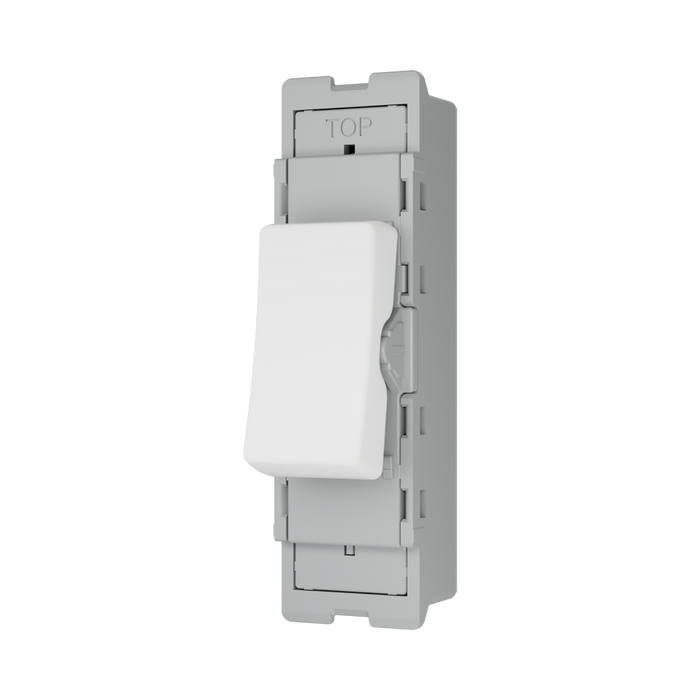

BG GridLite White Moulded White 20A 16AX 1 Way Single Pole Switch Module
The BG GridLite White Moulded White 20A 16AX 1 Way Single Pole Switch Module M11 is part of BG Electrical's GridLite screwless clip-in modular system, designed for faster installation and flexible custom configurations.
Clip-In Switch Module: Push-fit design snaps into BG GridLite front plates with no yoke or screws, reducing components and speeding up installation for a quicker, cleaner workflow.
20A 16AX Single 1-Way Switch Module: Anti-microbial white rocker for safe, hygienic operation. Rated for high loads, it provides simple single-point control for residential and commercial use.
Independent Module Replacement: Each module can be swapped without removing adjacent units, making retrofits quicker, easier, and disruption-free.
Easy Wiring: Clearly labelled terminals with backed-out retained screws to prevent screw loss. Fits standard 16mm back boxes, ideal for retro-fitting (3+ gangs will require 25mm minimum).
Versatility: Fit 3 modules on a 1-gang plate for compact, consistent installs, with interchangeable modules across BG GridLite ranges for seamless mixing, matching, and simplified stock management.
Product Details & Specifications
Dimensions
Height
59.5 mm
Width
16.6 mm
Depth
23.6 mm
Product Weight
0.014 kg
Product Details
SKU
M11
Manufacturer
BG Electrical
Range
GridLite White Moulded
Product Type
20A 16AX 1 Way Single Pole Switch Module
Finish
White
General Colour
White
Electrical Details
Operating Voltage
220-240 V
Frequency
50-60 Hz
Current Rating
20 A
Inductive Rating
16 AX
Installation
Minimum Box Depth
16 mm
Terminal Capacity
2 x 2.5;4 x 1.0;1 x 4 mm²
Terminal Arrangement
Inline
Backed-out Terminal Screws
Yes
Captive Terminal Screws
Yes
Compliance and Warranty
Standards
BS EN 60669-1:2018;BS EN 61000-3-3:2013+A2:2021;EN 60669- 1:2018;EN 61000-3-3:2013+A2:2021
RS Electrical Supplies Warranty
1 Year
Manufacturer Warranty
30 Years (held directly with BG Electrical)
Packaging
Package Type
Printed Bag
Packed HxWxD
110x75x24 mm
Packed Gross Weight
0.015 kg
Inner Quantity
10
Outer Quantity
100
