Product Description

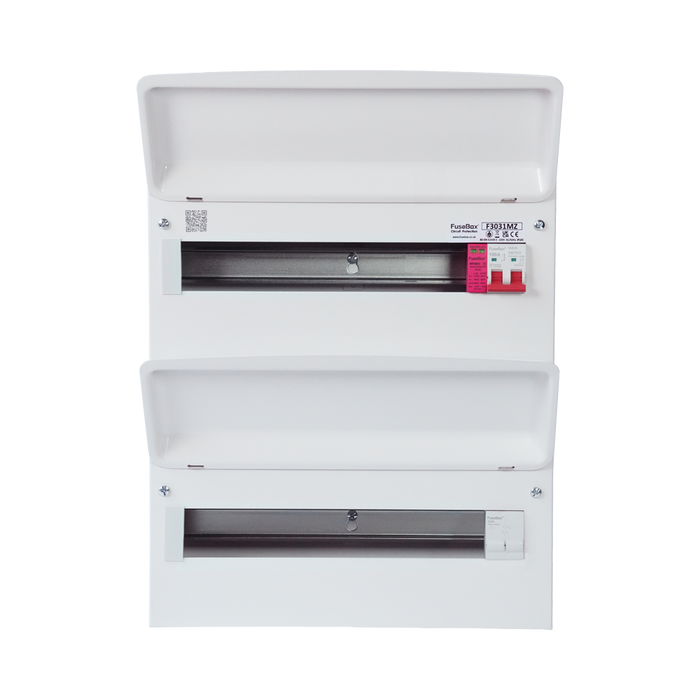

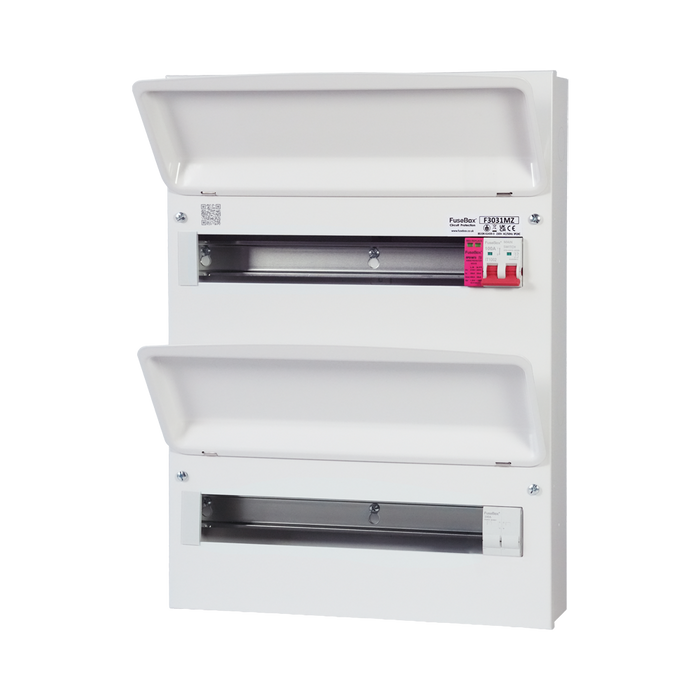

The FuseBox 31 Way 100A Main Switch Double Bank Consumer Unit with Type 2 SPD F3031MZ is a durable metal consumer unit for domestic and light commercial installations. It combines a 100A main switch with an integrated Type 2 surge protection device (SPD), helping protect connected equipment from transient overvoltages.
The double-bank layout offers generous circuit capacity, while the direct-to-busbar SPD requires no separate MCB. A spacious enclosure, removable raised DIN rail and round knockouts on every face help make cable routing and final connections easier.
Product Details & Specifications
Dimensions
Height
512 mm
Width
378 mm
Depth
113 mm
Product Details
SKU
F3031MZ
Manufacturer
FuseBox
Range
FuseBox Circuit Protection
Product Type
Main Switch Consumer Unit
Colour
White
Finish
RAL 9001 Powder-Coated White
Material
Steel
Consumer Unit Details
Number of Ways
31 Way
Main Switch Rating
100 A
Surge Protection
Type 2 SPD
SPD Connection
Direct-to-Busbar
Configuration
15/16 Way Double Bank
Electrical Details
IP Rating
IP2XC
Compliance and Warranty
Standard
BS EN / IEC 61439-3
Manufacturer Warranty
5 Years
