Product Description

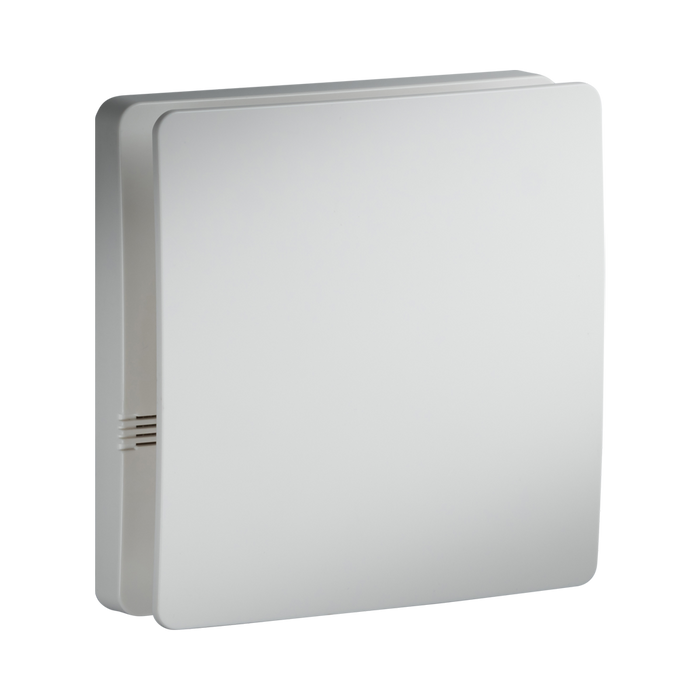

The EX1TWH is a quiet IP45 100mm extractor fan from Knightsbridge, finished in white and designed for wall or ceiling installation in bathrooms, toilets and utility rooms. It extracts up to 24 litres per second (87m³/h) while operating at 28.5–30dB at 3m.
An adjustable 2–30 minute overrun timer continues ventilation after switching off, helping remove moisture and odours. The fan includes a built-in backdraft kit, is Class II double insulated and requires no earth connection.
Suitable for duct runs up to 2m, the fan uses 9.7W at 230V 50Hz, is compliant with Building Regulations Parts F and L, and carries a three-year manufacturer warranty.
Product Details & Specifications

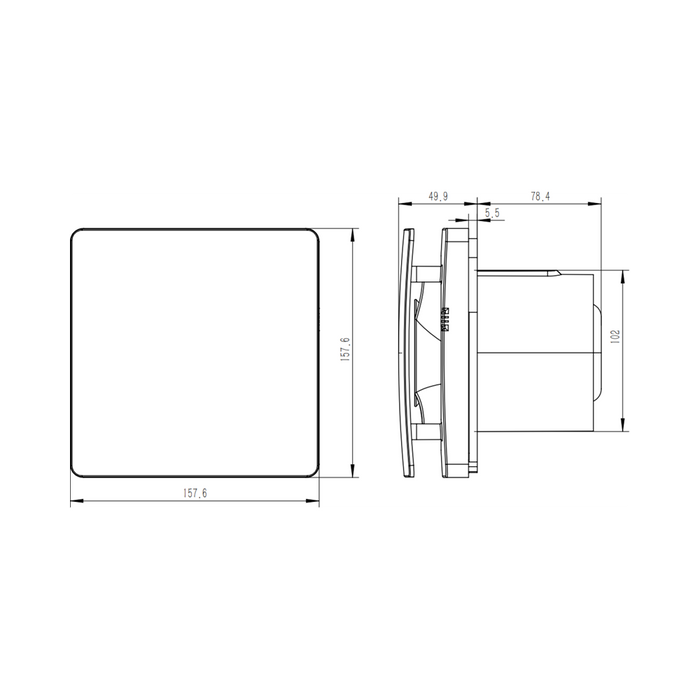

Dimensions
Height
157.6 mm
Width
157.6 mm
Depth
127.2 mm
Projection
49.9 mm
Recessed Depth
78.4 mm
Base Diameter
102 mm
Cut-Out Diameter
102 mm
Product Details
SKU
EX1TWH
Manufacturer
ML Accessories
Brand
Knightsbridge
Product Type
Wall and Ceiling Extractor Fan
Finish
White
Material
ABS
Installation
Wall or Ceiling
Maximum Duct Length
2 m
Net Weight
0.7 kg
Performance
Extraction Rate
24 l/s (87 m³/h)
Noise Level
28.5–30 dB at 3 m
Overrun Timer
2–30 minutes
Humidistat
No
Backdraft Kit
Included
Electrical Details
Input Voltage
230 V 50 Hz
Power
9.7 W
Protection Class
Class II
Earth Required
No
IP Rating
IP45
Compliance and Warranty
Building Regulations
Part F and Part L
Standards
BS EN 60335-1; BS EN 60335-2-80
Manufacturer Warranty
3 Years
Country of Origin
China
RS Electrical Supplies Warranty
1 Year
