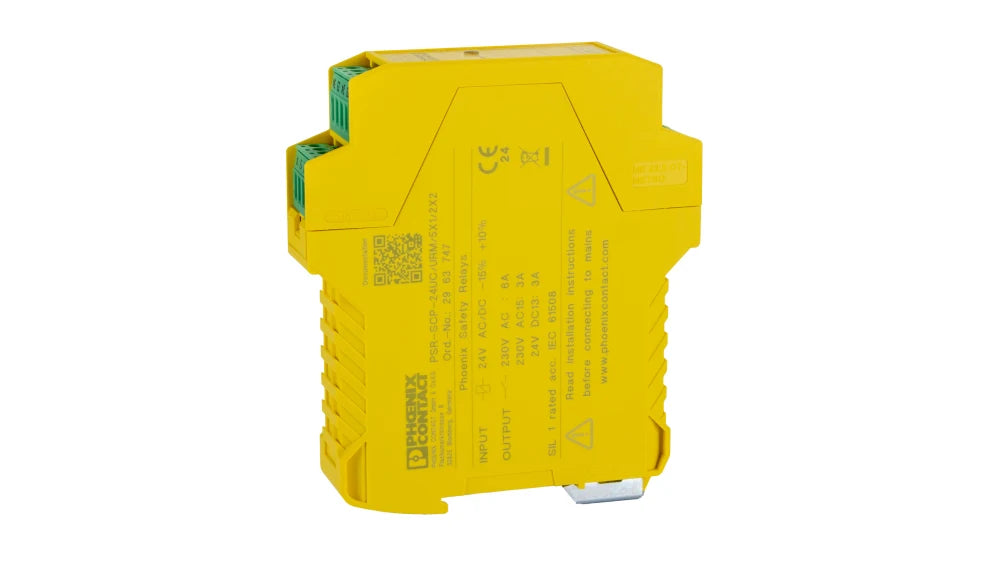

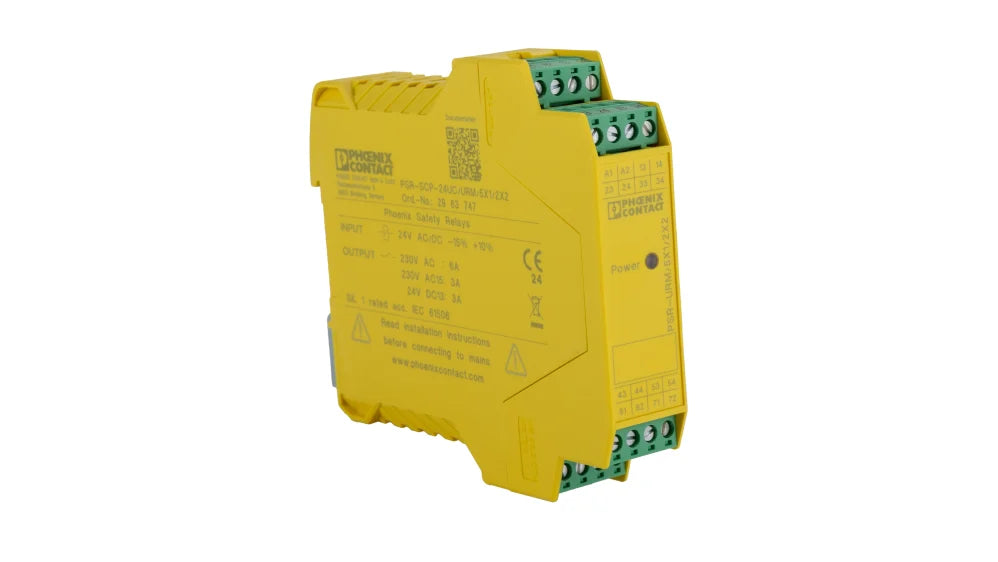

Phoenix Contact DIN Rail Force Guided Relay, 24V dc Coil Voltage, 5PST, DPST

For reliable switching of your automated system's safety circuits, install this force-guided relay from Phoenix Contact. It stops all its circuits from closing at once to activate protective devices without a hitch. Thanks to its highly conductive silver alloy pins, the unit supports the efficient signalling needed for speedy error detection. As it covers five circuits at once, it's a versatile fault-monitoring option. Clip it directly onto a DIN rail without tools and fly through installation.
Working with a setup that uses safety doors and guards? This relay reacts to any issues in 20ms to trigger them without delay. Its insulating PA casing cuts user exposure to hazardous loads for shock-free handling. Finding compatible equipment is easy, as it switches both AC and DC voltages. Thanks to easy-to-use screw terminals, you can be sure vibration and jostling won't disrupt your process.

Brand Phoenix Contact

Coil Voltage 24V dc

Mounting Type DIN Rail

Contact Configuration 5PST, DPST

Switching Current 6A

Maximum Switching Current AC 6 A

Coil Power 1.2W

Maximum Switching Current DC 6 A

Maximum Switching Voltage DC 230V

Maximum Switching Voltage AC 230V

Terminal Type Screw

Approvals CE

Standards Met EAC

Contact Material Gold Plated

Series PSR-SCP

Minimum Operating Temperature -20°C

Maximum Operating Temperature +55°C

Isolation Coil To Contact 4kV

Length 99mm

Height 114.5mm

Life 10000000 (Mechanical)Cycles

Maximum Switching Power AC 1.5 kVA

Depth 22.5mm
