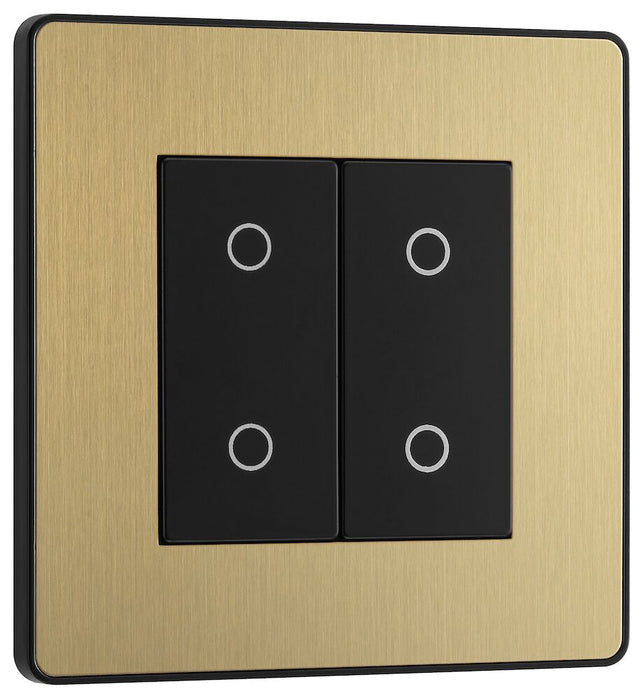

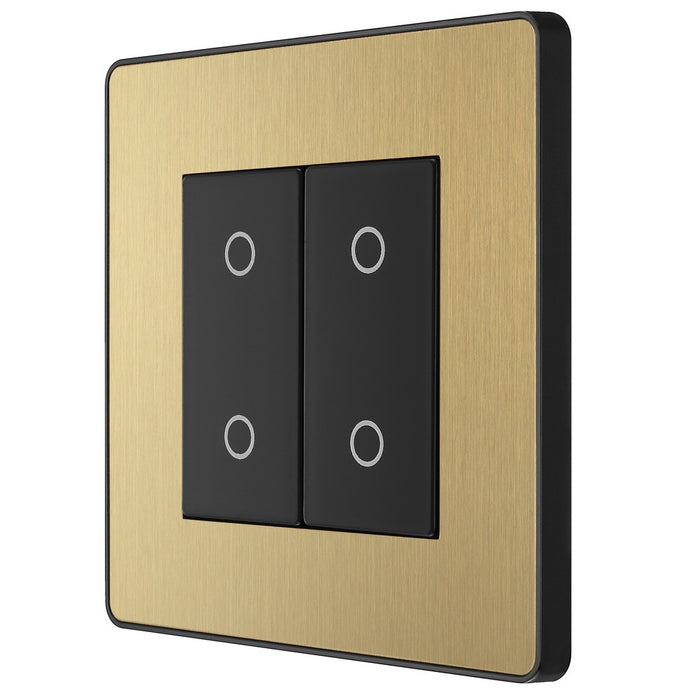

BG Evolve Satin Brass 2G Secondary Touch Dimmer Switch PCDSBTDS2B

Original price £15.12 - Original price £15.12
Original price
£15.12
£15.12 - £15.12
Current price £15.12

The PCDSBTDS2B is a 2G secondary touch dimmer switch from the BG Evolve range, finished in satin brass. The BG Evolve range is new on the outside with a polycarbonate front plate and contrast frame, but the inside is the same trusted technology as the BG Nexus Metal range. The satin brass finish comes with contrast black frame and black inserts.

Double Touch Dimmer Switch
2 Way Secondary Switch
To be used in conjuction with a Master Touch Dimmer Switch
Trailing Edge
Touch dimmer control
Silent operation - no noise when dimming
Support for lower wattage lamps eliminates flicker
Minimum Mounting Box Depth 25mm
Dimmensions - 86 x 86 x 5mm
Brand - British General Electrical
Plate Projection 5mm
Satin Brass with a Black Frame
Brushed Finish
Material: Polycarbonate
Certified to BS EN 60669-2-1

Load Rating (Max/Min per module)
Dimmable LED 5-100W
Tungsten/Incandescent 5-200W
Halogen 20-200W
Dimmable Compact Fluorescent (CFL) 5-100W

Installation Note
A Master can only be used in a one way switching circuit where one switch controls a light (or circuit) i.e. on or off.
For two way switching, where a light (or circuit) is controlled by two switches, the master touch dimmer must be used with a secondary touch dimmer at the secondary location.
A master touch dimmer cannot be used in combination with a traditional light switch or any other dimmer switch.

Standard UK Deliveries

Free delivery for orders over £120*

Royal Mail Tracked (Only available for orders below £50)

Standard delivery 2-4 business days

Express delivery 1-3 business days

*Mainland UK only. Postcode exclusions apply.


For deliveries to Northern Island, Channel Islands and Hong Kong please see details here.

BG Evolve Satin Brass

BG Evolve Satin Brass

Evolve is the new generation of modern wiring devices from BG. With the same reliable internal mechanics as the Nexus range, Evolve offers the freedom to change the front plate finish depending on your interior style and finish.
