BG Evolve White 20A 2 Way Key Grid Module RPCDW12KY

BG Evolve White 20A 2 Way Key Grid Module RPCDW12KY

£4.87 - £4.87
£4.87
£4.87 - £4.87
£4.87
Ex VAT £4.06
Product Description

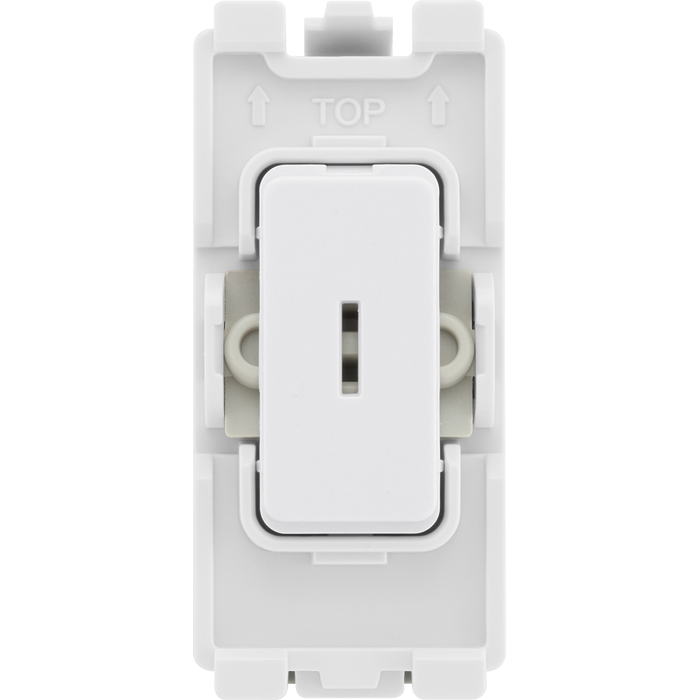

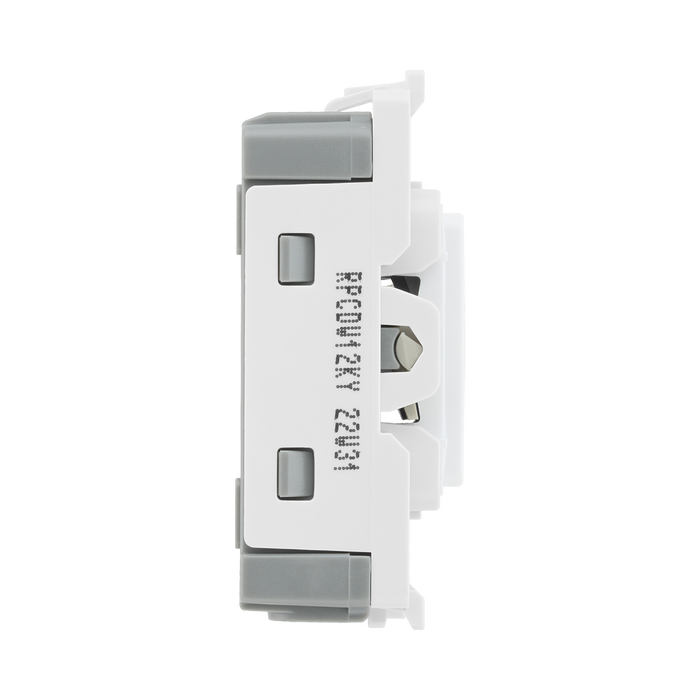

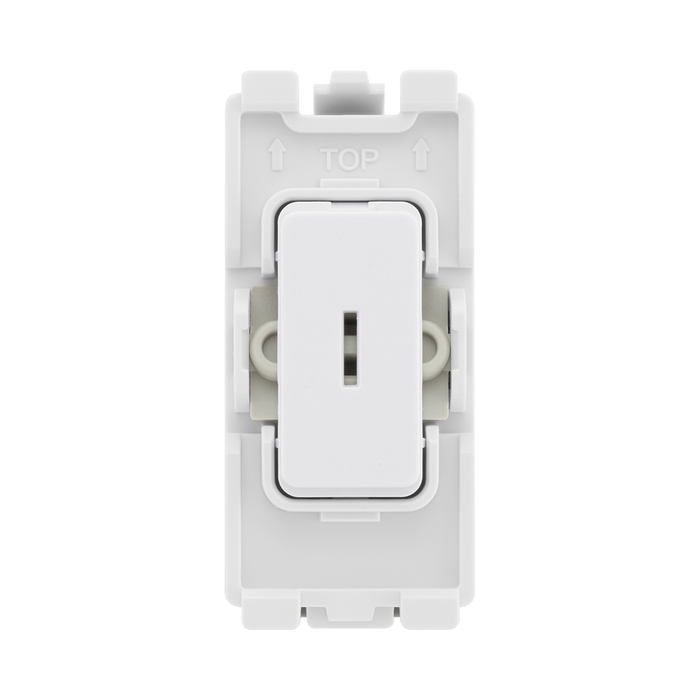

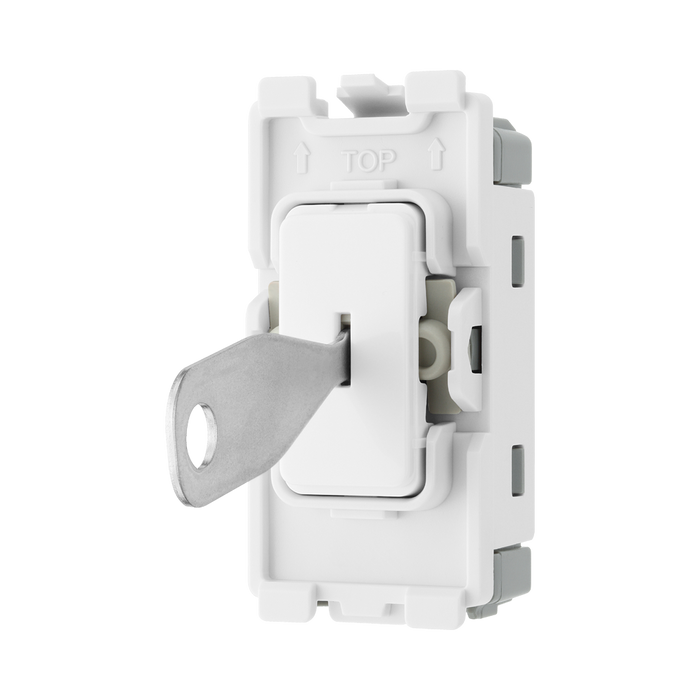

The BG Electrical RPCDW12KY is a 20 Amp, 2 Way key grid module with a white front. Compatible with the BG Evolve grid range, grid modules enable you to customise your own switch, by combining three elements, grid plate, grid frame and grid module.

Product Details & Specifications
Dimensions
Height
54 mm
Width
25 mm
Depth
22 mm
Product Details
SKU
RPCDW12KY
Manufacturer
BG Electrical
Range
Nexus Grid
Product Type
20 A 2 Way Key Grid Switch Module
Colour
White
Finish
White
Material
Thermoplastic
Compatible Range
Evolve
Grid Details
Module Width
1 Module
Number of Ways
2 Way
Pole Configuration
Single Pole
Operation
Key Operated
Electrical Details
Current Rating
20 A / 20AX
Voltage Rating
250 V AC
IP Rating
IP20
Installation
Minimum Back Box Depth
25 mm

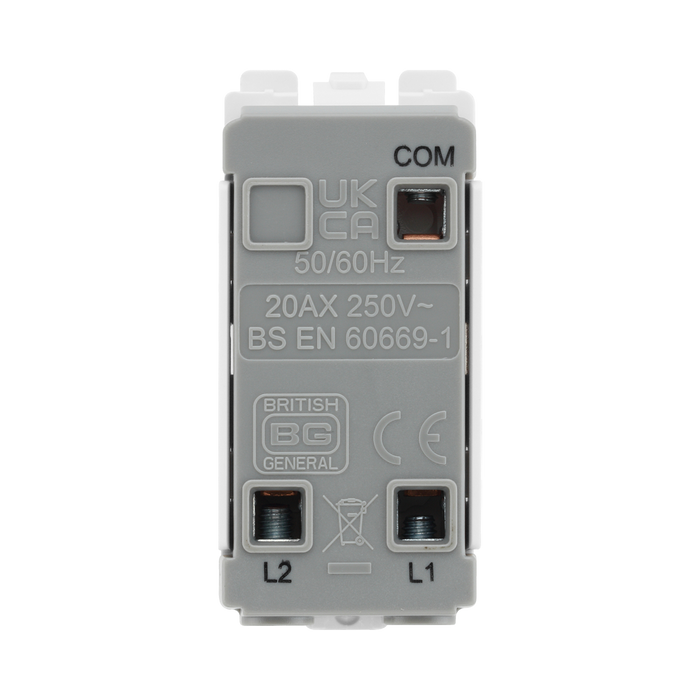

Terminal Type
Captive, backed-out screw terminals
Grid Frame and Front Plate Required
Yes
Compliance and Warranty
Standard
BS EN 60669-2-1
RS Electrical Supplies Warranty
1 Year
Manufacturer Warranty
25 Years (held directly with BG Electrical)
